 HMV 94A
Steve E.
Posted: Jan 12 2009, 06:17 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



OK, I'm putting this back up.
user posted image
user posted image
user posted image
user posted image
user posted image

Top
Steve E.
Posted: Jan 12 2009, 06:18 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image

This post has been edited by Steve E. on Jan 12 2009, 06:20 PM
Top
Steve E.
Posted: Jan 12 2009, 06:19 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
Top
wjw
Posted: Jan 12 2009, 08:41 PM


Geezer


Group: Members
Posts: 110
Member No.: 19
Joined: 10-January 09

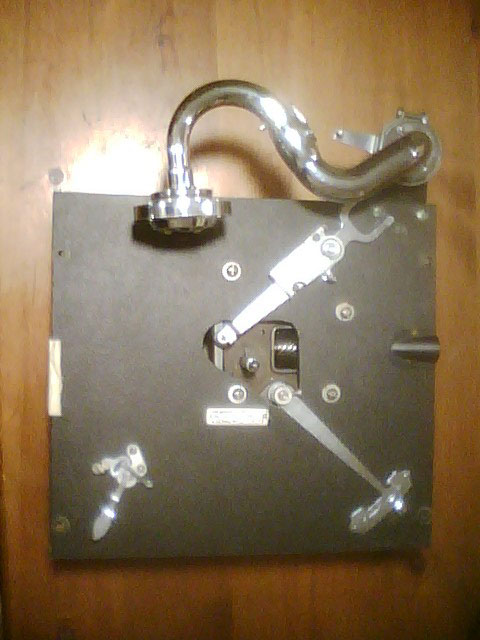

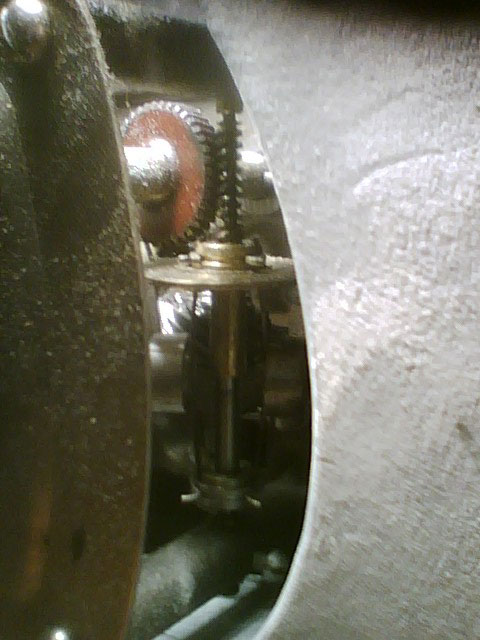

Nice machine in wonderful condition! Is that a velocity stop mech. under the turntable?
Top
Steve E.
Posted: Jan 12 2009, 11:00 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



Yes it is! has to adjust it slightly and it works like a charm. I don't get HOW, though.

Let's see what i can remember from the old thread....
Top
Steve E.
Posted: Jan 12 2009, 11:14 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09

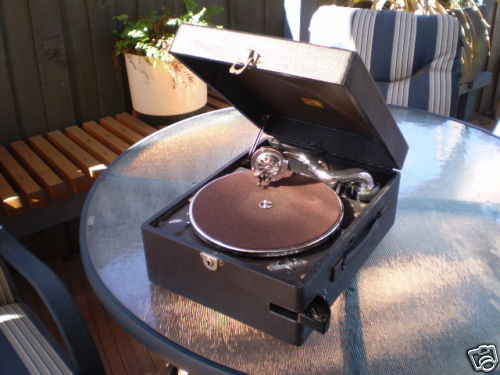

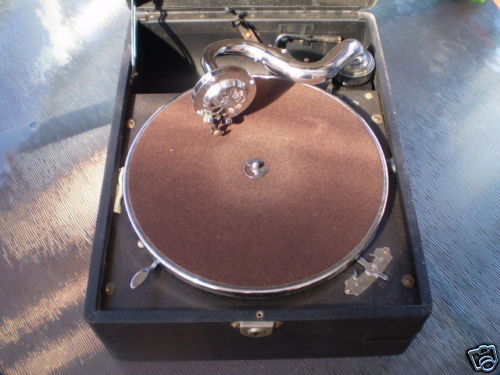

I bought this from Australia a couple months ago, and it was most likely designed for export to the bush from the UK.

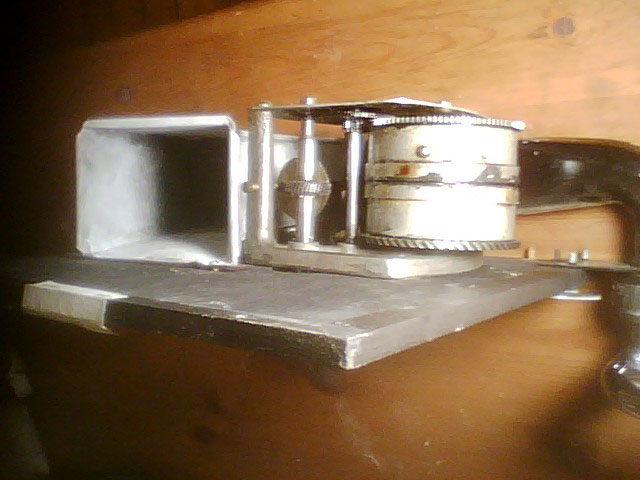

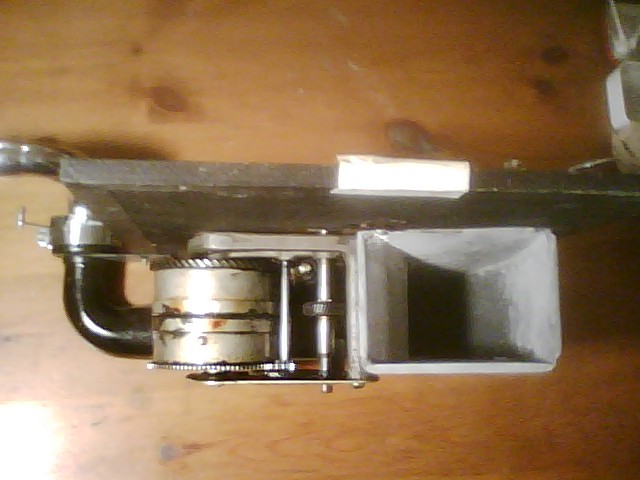

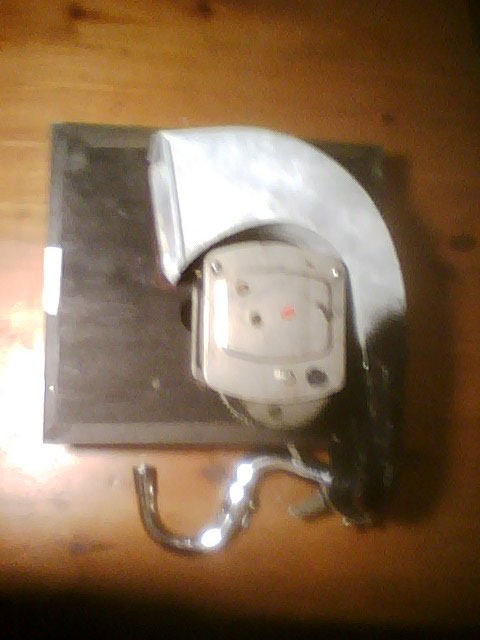

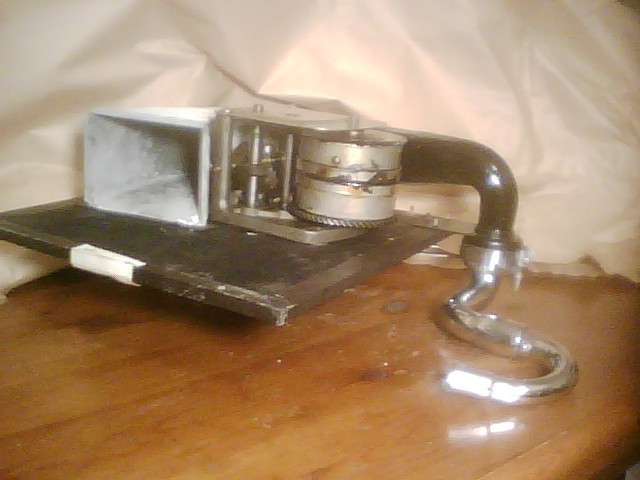

It's reportedly a budget variation on the HMV 102. Note the truncated horn. Nonetheless, the sound is excellent. Not pictured is a little curved piece in the lower left hand corner of the box, which may help bounce the sound slightly and expand the functional length of the horn slightly. I think it compares favorably to the HMV C101G I just received today. Louder, less distorted. (Most likely the HMV 101 needs work on its #4 reproducer.)

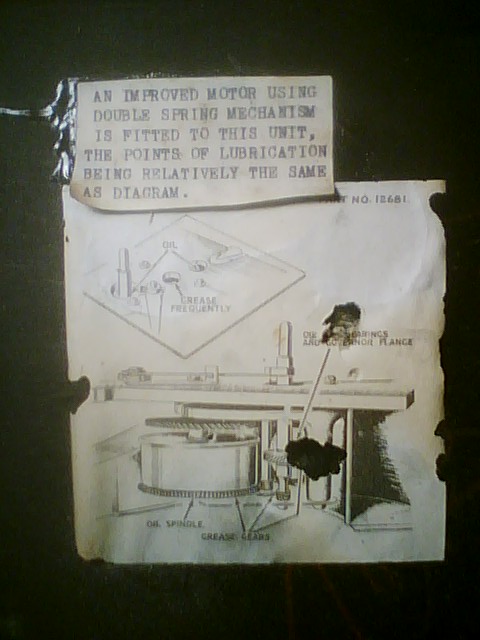

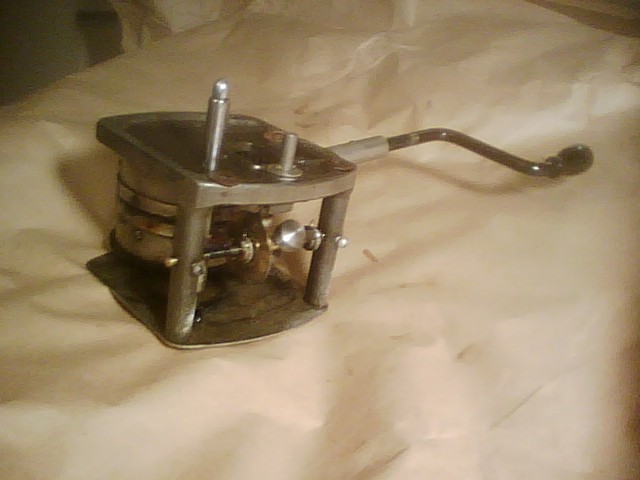

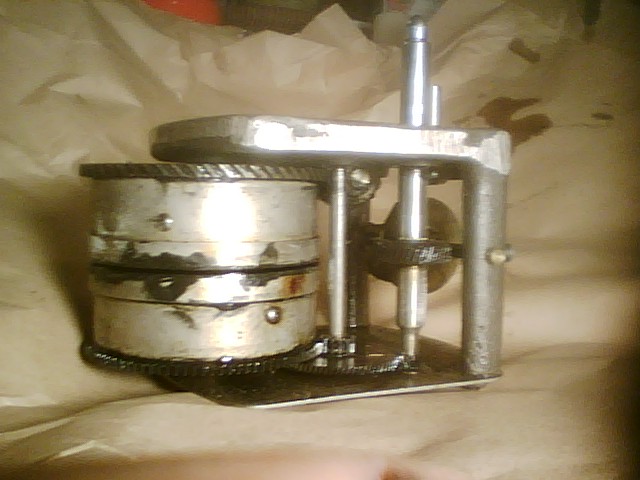

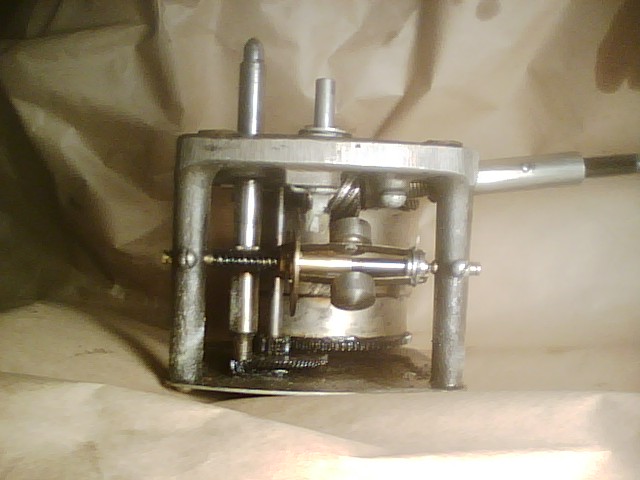

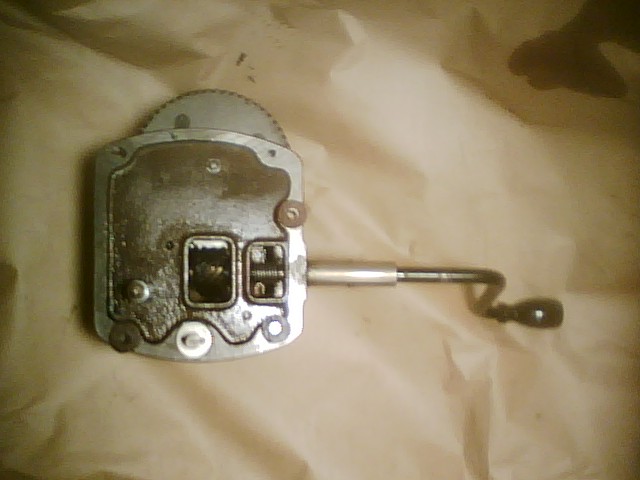

This one has a double spring. Cool.

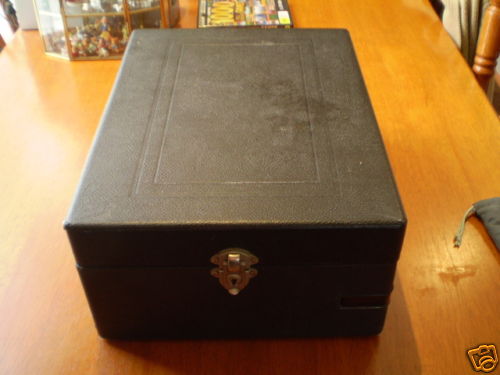

It's miraculously light to carry.

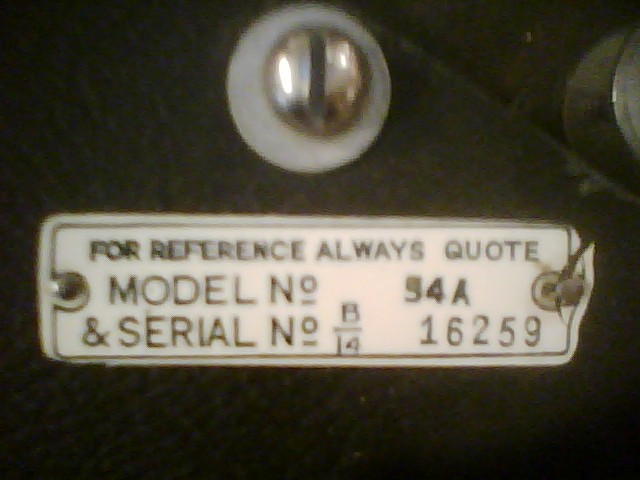

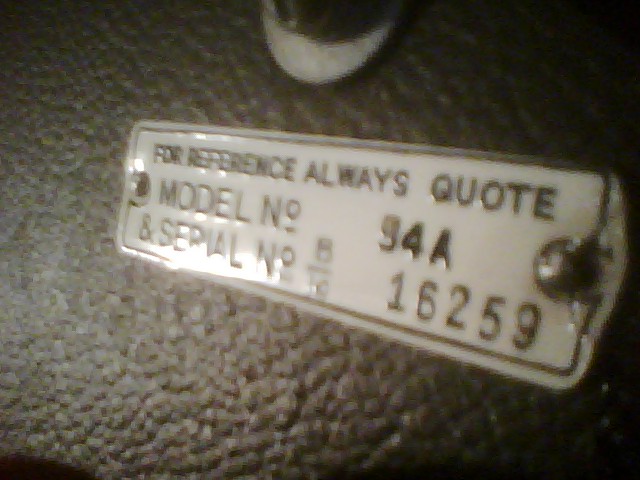

Someone explained that the "B" on the plate means "1936" and the "14" means "plus 14." Which means this machine was made in 1950.

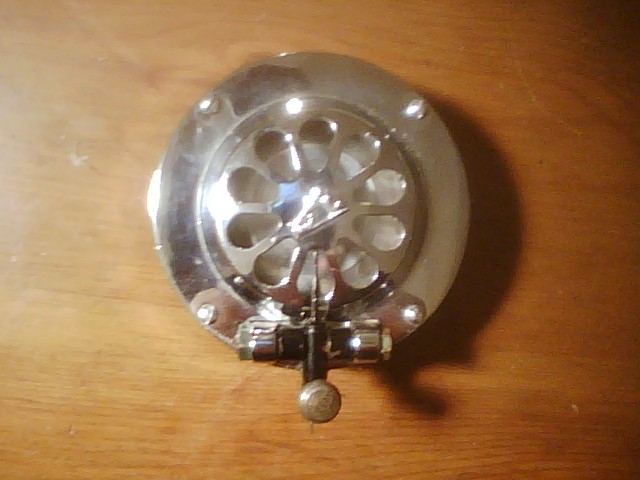

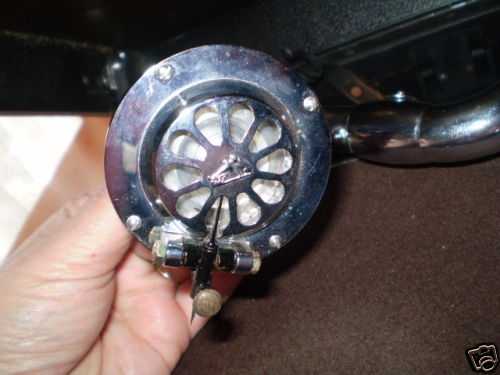

What kind of reproducer is on this?

Really, my only gripe is...no place to store records! I wonder if it came with one of those odd record holding accessories like the HMV 102.
Top
Phonojim
Posted: Jan 13 2009, 12:39 PM


Regular Member


Group: Members
Posts: 29
Member No.: 33
Joined: 13-January 09



From what I can see, the reproducer looks a lot like a Columbia Vivatonal.

PJ
Top
Steve E.
Posted: Jan 13 2009, 02:58 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



Did Columbia Vivatonals ever end up with Nipper dogs on 'em?

I used a microscope and determined that it does say "The Gramophone Company" in tiny letters on the decal. Did Columbia own that by 1950?

[Edit: US Wikipedia says yes, starting in 1931.]

This post has been edited by Steve E. on Jan 13 2009, 03:02 PM
Top
Steve E.
Posted: Jan 19 2009, 12:02 PM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



I just did a time test. I can get 9 minutes of play out of one winding of this. On the HMV 101 I can get, I think, 6 3/4 minutes. Actually, that makes me all the more impressed at the HMV 101 given that it's a single spring. (Neither spring has been lubricated.)

This post has been edited by Steve E. on Jan 19 2009, 12:12 PM
Top
Dan Gilmore
Posted: Jan 19 2009, 07:57 PM


Neo Luddite


Group: Admin
Posts: 1,767
Member No.: 1
Joined: 6-January 09



That's a nice solid spring for a portable!
Top
AZ*
Posted: Jan 19 2009, 09:19 PM


Phono Nut


Group: Members
Posts: 63
Member No.: 2
Joined: 7-January 09



QUOTE (Steve E. @ Jan 13 2009, 12:58 PM)
Did Columbia Vivatonals ever end up with Nipper dogs on 'em?

I used a microscope and determined that it does say "The Gramophone Company" in tiny letters on the decal.  Did Columbia own that by 1950?

[Edit:  US Wikipedia says yes, starting in 1931.]



In Britain, Columbia and the Gramophone Company (HMV) merged in 1931 to form EMI. Some former Columbia products continued to be manufactured with Columbia trademarks and names, while others were issued with the HMV label. I have a Columbia 204 which is virtually identical to the HMV 97.

And yes, some Columbia Vivatonals did end up with Nipper on them.
Top
Steve E.
Posted: Oct 18 2011, 12:18 AM


Regular Member


Group: Members
Posts: 18
Member No.: 3
Joined: 7-January 09



A little update.....

Now that I have an HMV 102 with a 5B soundbox, I am a bit less impressed with the sound on this 94, at least in its current shape. It's become my second best machine. Still good, but it lacks the nice full bass sound of the 102. It is, though, nice and loud, and like the HMV 102, it is unusually good for playing the quiet homemade 78s I cut onto picnic plates, for playback with catcus needles (but that's another story.)

It has a narrower arm than the HMV 102. Apparently this affects the potential bass response.

The soundbox of the 94 does not have a rubber gasket where it connects to the arm. It doesn't seem to need it. Snug fit, a little grease. Possibly a design advantage over time.

In the process of doing some research tonight, I found out a few things:

*There was an HMV 94 (with no "A") manufactured in 1940 (serial number B/4 gives the year away....right click on picture #3.)

http://www.windupgram.co.uk/hmv94.htm

This looks to be basically the same machine, in a nice brown. Soundbox looks identical. The seller does not describe whether it has autostop. it DOES have the bigger motor.

*The soundbox on the HMV 94 AND HMV 97 is apparently the No.21. I don't know if that's called a "Columbia" or "Viva-tonal" or "HMV" No.21. Apparently some wartime HMV 97s had a no.23, whatever that meant.

*I have now seen pix and videos of the somewhat better documented HMV 97 (Introduced in the earlier 1930's). I see NO DIFFERENCE between the 97 and the 94. Again, I wonder....might the difference have been autostop? Lack of double-spring motor in the HMV 97?

*The HMV 88 seems a little different from these, at least superficially. It has a little well for the needles, for one.

*Some sites say that the HMV 97 is virtually the same as either the Columbia 204 or the Columbia 211. I have seen photos of those. They look very close, but there ARE superficial differences. The 204 may have a different soundbox, or at least a different pattern on the faceplate. The 211 looks more like the HMV88, at least superficially. Nonetheless, yes, I do see a lot of similarities. They may ALL have that truncated horn that blasts to the back from the front left bottom
corner of the machines.
Top
Dan Gilmore
Posted: Oct 29 2011, 06:45 PM


Neo Luddite


Group: Admin
Posts: 1,767
Member No.: 1
Joined: 6-January 09

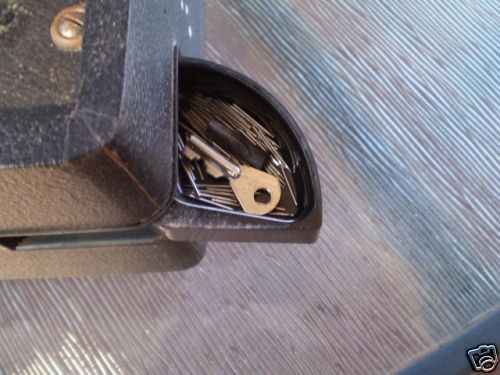

Very neat machine. I always liked the little needle drawers on the corner.
